Schaeffler Mexico is a regional manufacturing and technical service base for automotive and precision machine tool industries, supplying servo spindle parts to local CNC builders.
Stray shaft current forms conductive loops inside spindles, while conventional thick coatings exceed tolerance and build up in narrow angular contact grooves.

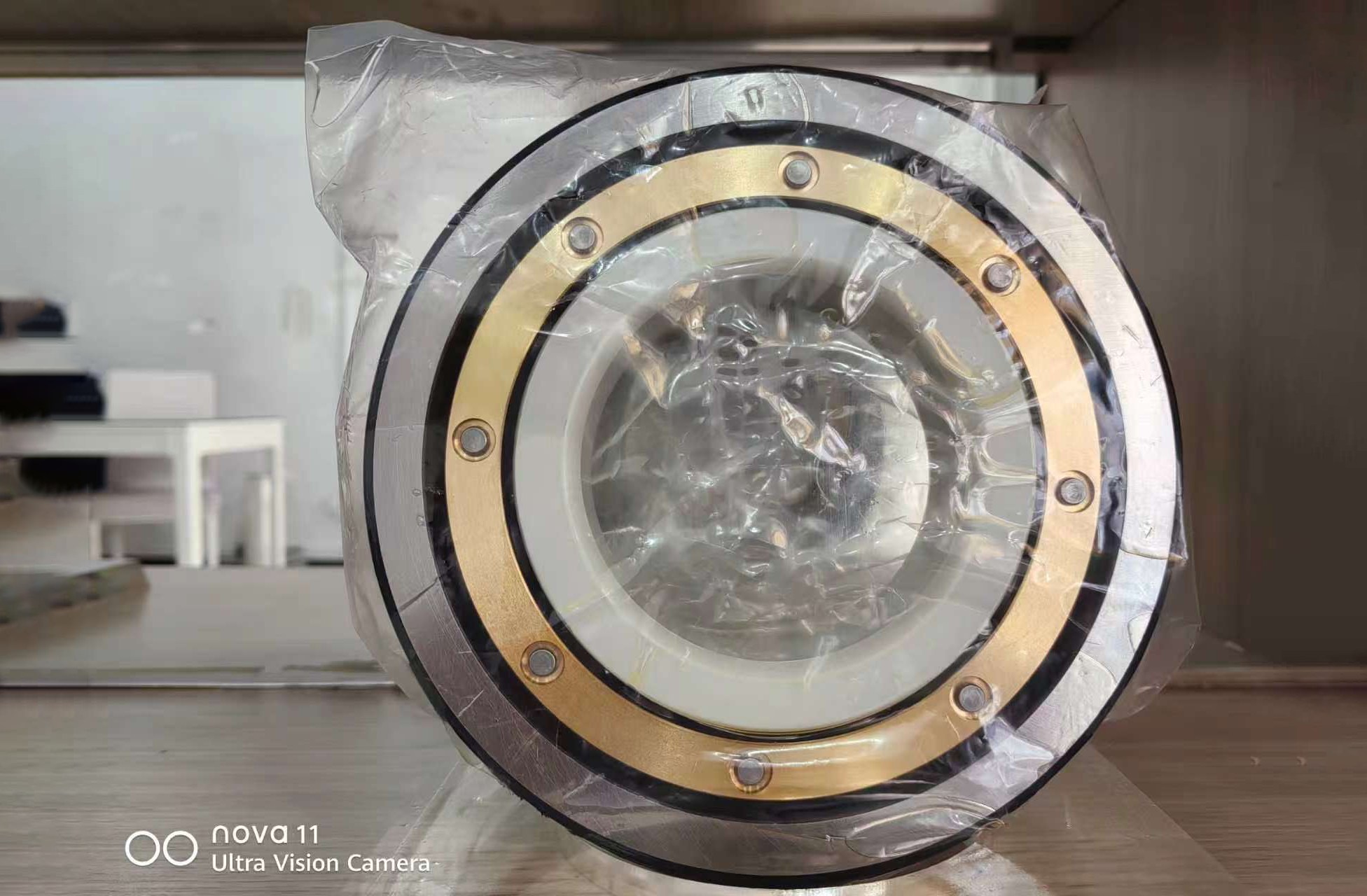

Deliver J20A thin alumina insulated bearings balancing insulation performance with ultra-high rotational accuracy at 20,000 r/min.
Over-thick coating causes excessive radial runout; too thin cannot meet the high-voltage insulation standard.
Ultra-high speed friction demands both high-temperature resistance and abrasion resistance in one layer.
The arc raceway structure causes uneven spraying and groove buildup that disturbs internal clearance.
Every bearing needs separate insulation resistance and runout checks, raising QC standards and cost.
Thickness held at 50-100μm (range 50-200μm), withstanding 3000V DC with no spark erosion at 1000V pulse.
≥100MΩ at 500V DC and ≥50MΩ at 1000V DC, with no attenuation during 20,000 r/min continuous rotation.
Angular-contact-specific process avoids coating accumulation in narrow grooves and keeps full precision.
Wear-resistant alumina resists friction heat and prevents cracking or peeling in long high-temperature cycles.
Electric pitting faults were eliminated, radial runout stayed within tolerance at 20,000 r/min, bearing wear loss fell 65% and CNC workpiece yield rose 8%.
